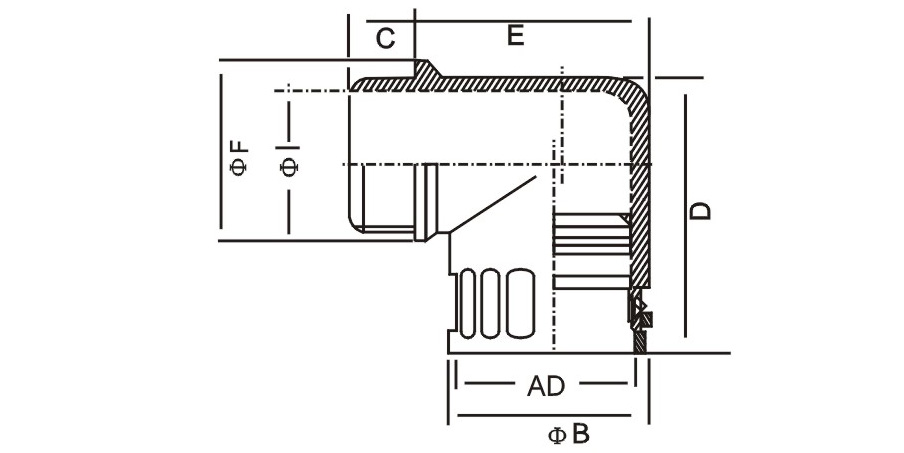

直角弯头-LKE00208
直角弯头LKE00209
螺纹规格: 公制螺纹(Metric)/德制螺纹(PG)
产品材质: 尼龙66(NYLON66)原料制成
产品认证: 欧洲CE,ROHS
防火等级: UL94V-2
颜色种类: 黑色B、灰色G.
工作温度: -40°C至85°C
产品特性: 装卸只需拨插无需工具
德制螺纹 (PG)
|
订购代码 |
AD适配软管外径尺寸 |
螺纹规格(德制) |
螺纹外径 (mm) |
I(mm) |
C(mm) |
E(mm) |
F(mm) |
|
LKE-208-PG7 |
AD10.0 |
PG7 |
12.5 |
9.0 |
10.0 |
32.0 |
16.0 |
|
LKE-208-PG9 |
AD13.0 |
PG9 |
15.2 |
11.6 |
10.0 |
34.5 |
20.0 |
|
LKE-208-PG11 |
AD15.8 |
PG11 |
18.6 |
13.5 |
10.0 |
37.5 |
24.3 |
|
LKE-208-PG13.5 |
AD15.8 |
PG13.5 |
20.2 |
16.0 |
10.0 |
37.5 |
24.0 |
|
LKE-208-PG13.5 |
AD18.5 |
PG13.5 |
20.4 |
16.0 |
11.0 |
43.5 |
27.0 |
|
LKE-208-PG16 |
AD21.2 |
PG16 |
22.5 |
17.5 |
13.0 |
49.0 |
31.0 |
|
LKE-208-PG21 |
AD28.5 |
PG21 |
28.3 |
23.0 |
13.0 |
57.0 |
34.0 |
|
LKE-208-PG29 |
AD34.5 |
PG29 |
37.0 |
30.0 |
14.5 |
64.0 |
43.0 |
|
LKE-208-PG36 |
AD42.5 |
PG36 |
47.0 |
38.0 |
14.5 |
72.0 |
50.0 |
|
LKE-208-PG48 |
AD54.5 |
PG48 |
59.3 |
52.0 |
16.0 |
84.0 |
64.0 |
英制螺纹 (G)
|
订购代码 |
AD适配软管外径尺寸 |
螺纹规格 (英制) |
螺纹外径 (mm) |
I(mm) |
C(mm) |
E(mm) |
F(mm) |
|
LKE-208-G1/2 |
AD21.2 |
G 1/2 |
20.9 |
15.0 |
13.0 |
49.0 |
31.0 |
|
LKE-208-G1/2 |
AD25.0 |
G 1/2 |
20.9 |
15.0 |
13.0 |
52.0 |
32.0 |
|
LKE-208-G3/4 |
AD28.5 |
G 3/4 |
26.4 |
21.0 |
13.0 |
57.0 |
34.0 |
|
LKE-208-G1″ |
AD34.5 |
G 1″ |
33.0 |
32.0 |
14.5 |
64.0 |
43.0 |
